Size & Rating
150#
1/2 Inch-4 Inch
Description
Series 1500-PFA lined globe valve specially design for controlling corrosive fluid, hazardous fluid, vapor, gases and pharmaceutical industries.
Series 1500-PFAis specially suitable for where stainless steel is not sufficient for corrosion resistance Where Metal Can't use for Metal reactive media
High-purity and bio-technological media where good cleaning and anti-adhesive surface all required
Features
One piece body: One piece PFA lined body design for easy access to all internal parts for Online inspection, maintenance and trim replacement.
PTFE Bellows: PTFE Bellows hermetically seal the product chamber from the atmosphere and protect the valve shaft form against corrosion.
Replacable plug: Replacable plug design used for easy maintenance and changing the valve CV as per the requirement. pure PTFE no Fillers.
Replacable seat: Replacable seat design used for easy maintenance and changing the valve CV as per the requirement, pure PTFE, no Fillers.
Gland packing: Adjustable gland packing are provided as a standard feature, this work as a secondary gland seal (first bellow seal ) in close type by using rubber bellow design.
Travel stopper: Travel stopper are specially design to protect the PTFE plug and seat from the actuator force during high shut off.
Monitor connection: this connection available to identified any leak after bellow puncture.
Micro Flow Trims: Micro trims are available for controlling the minute flow assure high rangeability.
Bellow Cover: Bellow Cover for gland packing to prevent from dust.
Specifications
Operating Pressure
0.1mbar vacuum up to 16 bar
Operating Temperature
-60 to +20o C
Size Range
½ “ to 4” (15mm to 100mm)
Class
ANSI 150#, Equivalent in BS and DIN
Body MOC
A 216 GR WCB
Bonnet
Standard
Actuator
Multispring Diaphragm Actuator
Control Characteristics
Equal percentage, Linear On-off
Rangeability
1:30 , 1:50
Face to face Standard
ANSI/ISA 75.08.01
End Connection Standard
B16.5
Lining Material
PFA
Packing
PTFE V-ring
Accessories
Pneumatic Positioner, Electropneumatic Positioner, Smart Positioner, Air Filter Regulator, Air Lock Relay, Air Volume Booster, Limit Switch, Proximity Switch, Solenoid Valve, Position Transmitter etc.
|

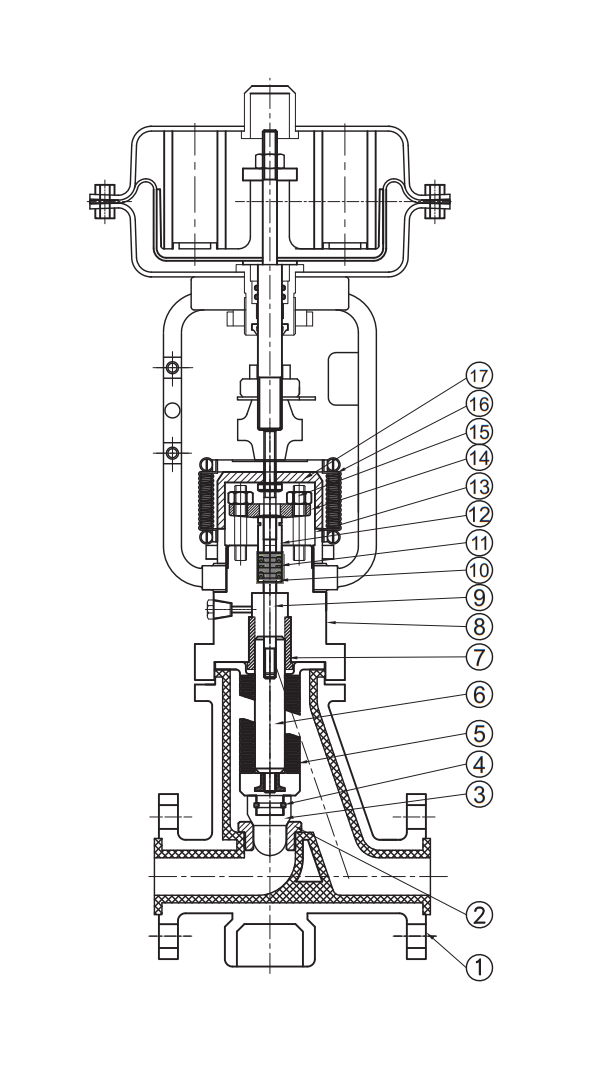

Sr No. |
Part Name |
MOC |
|
01 |
Valve Body |
A 216 GR WCB+PFA/ CF8M + PFA, etc. |
|
02 |
Seat Ring |
PTFE |
|
03 |
Plug |
PTFE/HAST-C |
|
04 |
Braided Rope |
PTFE |
|
05 |
Bellow |
PTFE |
|
06 |
Bellow Shaft |
HAST-C/SS316/SS410, etc. |
|
07 |
Guide Bush |
HAST-C/SS316/SS410, etc. |
|
08 |
Bonnet |
A 216 GR WCB/CF8M, etc. |
|
09 |
Valve Stem |
HAST-C/SS316/SS410, etc. |
|
10 |
Spreader |
HAST-C/SS316, etc. |
|
11 |
V-Ring |
PTFE |
|
12 |
Gland Bush |
HAST-C/SS316, etc. |
|
13 |
Lock Ring |
WCB/CF8M |
|
14 |
Gland Flange |
HAST-C/CF8M |
|
15 |
Gland Stud &Nut |
HAST-C/B8-8/B8M-8M |
|
16 |
Bellow Cover |
Rubber + Fabric |
|
17 |
Stopper Cum Lock Ring |
SS 316 |
