Size & Rating
150#
60 Inch | DN 1500
300#
60 Inch | DN 1500
600#
56 Inch | DN 1400
900#
48 Inch | DN 1200
1500#
24 Inch | DN 600
2500#
20 Inch | DN 500
Description

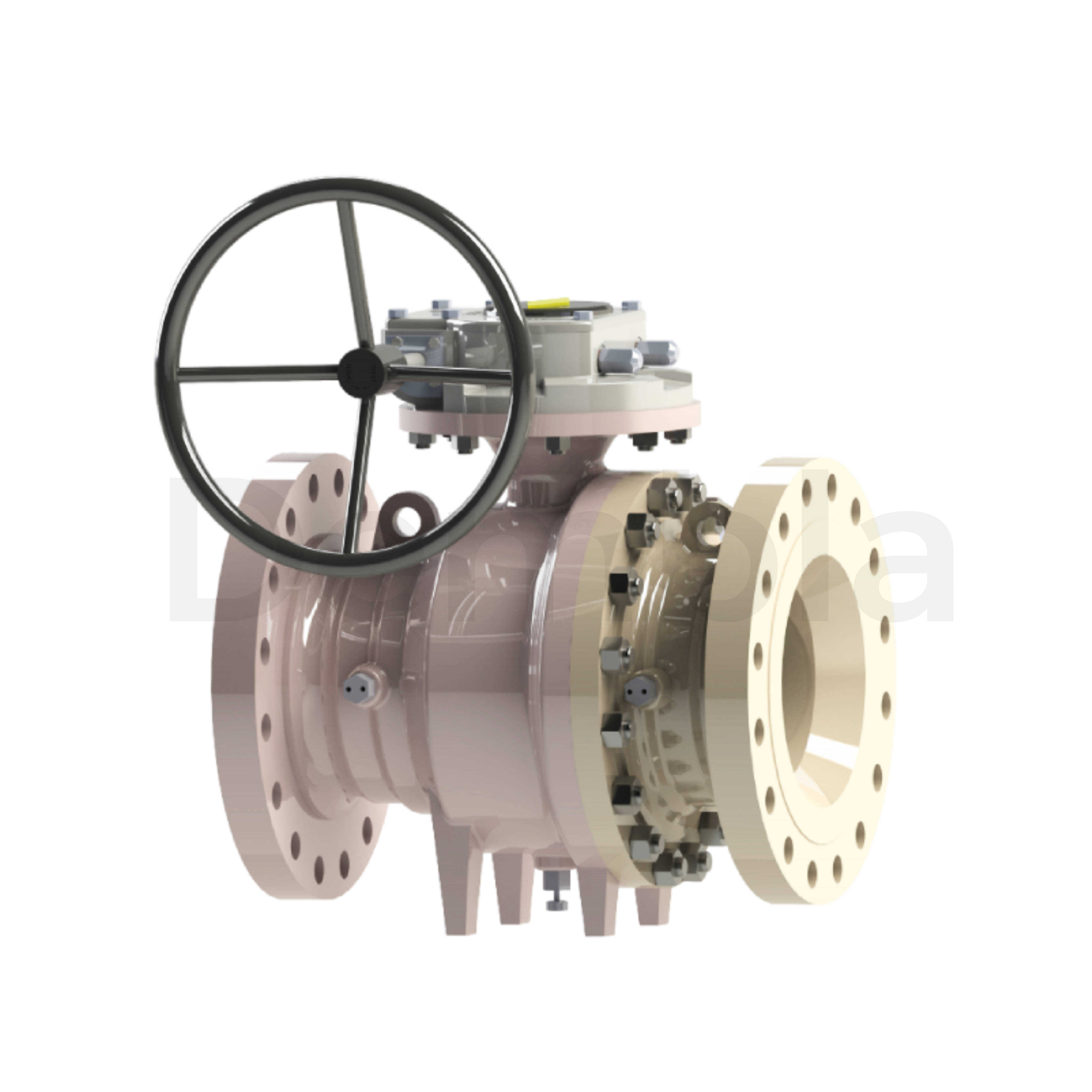

Dembla Trunnion Ball Valves in two Designs:
1] Two Piece Design Ball Valve
2] Three Piece Design Ball Valve
these Ball Valves are produced with advanced design features complying to API 6D, BS 5351 standards. The
valves are side entry type design construction that allows easy maintenance. Valves are available with
solid ball design for full Bore and reduced Bore valves.
Design
ASME B16.34, API 6D, BS 5351, BS/EN 17292
F/F
API-6D/ASME-B-16.10
Testing
API-6D/API-598/ISO-5208/EN-12266
Fire Safe
API-607/API-6FA
Anti static Test
API6D
Cavity Relief Test
API6D
End Connection
FLANGE-B16.5,B16.47,EN1092-1
BUTTWELD-B16.25
Flange Drilling
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP 44, EN 1092
Buttweld Ends
ASME B16.25, ASME B31.3, ASME B31.4, ASME B31.8
Actuator Mounting Pad
ISO 5211
Drain/ By Pass
API 6D
Materials
ASME SEC.II
Nace Compliance
NACE MR 01-75
Quality Standard
ISO 9001:2015, No CE-0062-PED-H-DVL 001-21-IND, ATEX, 94/9/EC
Casting Inspection
MSS SP -55
Fugitive Emission Test
ISO 15848
Metal Seated Rate 'A' as per ISO 5208
Most Popular & Reliable Valve For Isolation & Shut Down Applications
Three Piece, Two Piece Designs Available
External and Internal Trunnion Design Available
ENP Coating Inside Valve As Option
Stellited Ball & Seats For Tight Shut In Abrasive Fluids
Blowout proof stem design
Auto Cavity Relief Design
Double Block & Bleed
Cryogenic application valve available
Material
|
MATERIAL |
CASTING |
FORGING |
|
CARBON STEEL |
A216 Gr. WCB, A217 Gr. WC6, A217 Gr. WC9 |
A105 |
|
LOW TEMP CARBON STEEL |
A352 Gr. LCB, A352 Gr. LCC |
A350 Gr. LF2 |
|
STAINLESS STEEL |
A351 Gr. CF8M, A351 Gr. CF8, A351 Gr. CF3M, A351 Gr. CF3 |
A182 Gr. F316, A182 Gr. F304, A182 Gr. F316L, A182 Gr. F304L |
|
DUPLEX |
A995 Gr. 4A |
A182 Gr. F51 |
|
SUPERDUPLEX |
A995 Gr. 5A, A995 Gr. 6A |
A182 Gr. F55 |
|
HAST C |
A494 Gr. CW-12MW |
B574 UNS N10276 |
|
ALLOY 20 |
A351 Gr. CN7M |
B462 Gr. N08020 |
|
BRONZE |
B62 Gr. C83600 |
|
|
ALUMINIUM BRONZE |
B148 Gr. A |
B150 Gr. C62300 |
|
NICKEL AL BRONZE |
B148 Gr. D |
B150 Gr. C62300 |
|
TITANIUM |
B381 |
B381 |
|
MONEL |
MONEL 400, MONEL K-500 |
MONEL 400, MONEL K-500 |
|
NICKEL |
INCONEL 625, INCONEL 825, INCONEL 718, INCONEL X750 |
Application Industries
Pharmaceuticals
Paper and Pulp
Petrochemicals
Oil and gas
Piping Systems
Ship Building
FPSO
Chemicals & Natural Gas
Power Plants
Sugar Mills
Gas Process
Water
Mining
Food & Beverage
Size & Rating
150#
26 Inch | DN 600
300#
24 Inch | DN 600
600#
24 Inch | DN 600
900#
16 Inch | DN 400
1500#
16 Inch | DN 400
Description

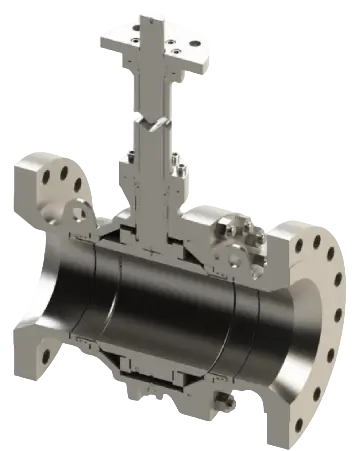

Dembla Cryogenic Ball Valves can withstand and operate effectively at extremely cold temperatures up to -196oC. Cryogenic ball valves are bi-directional, tight shut-off used in low-temperature applications with hazardous and non-hazardous environments. The unique bonnet design allows only a thin layer of flow between extension ID and stem OD, resulting in minimum energy loss along the extension.
Features
Height of the extended bonnet suitably designed to keep away stuffing box from cryogenic surfaces. This avoids the failure of seals due to low temperature effect.
Anti Blow-out Stem.
Anti-static Device
Automatic Cavity Relief
ISO mounting pad for gearbox/ actuator
Lip seal
Dual seal
Bi-directional
Double Block and Bleed
Design
BS 6364, API 6D
F/F
ASME B16.10, API 6D
Flange End
ASME B16.5
Test and Inspection
MR-0175
Welding
ISO 5208, BS 6364, MESC SPE 77/200, MSS SP-134
MATERIAL |
Limiting Temperature |
|
Forged |
Casted |
|
A350 LF3 |
A352 LC3 |
-101oC |
A182 F304 |
A351 CF8 |
-254oC |
A182 F316 |
A351 CF8M |
-254oC |
A182 F304L |
A351 CF3 |
-254oC |
A182 F316L |
A351 CF3M |
-254oC |
Seat / Seal MOC
Properties |
PCTFE |
PTFE |
PEEK |
|
Temperature Range °C (°F) |
-302~328 |
-328~392 |
-148~500 |
|
Pressure Rating |
150# - 1500# |
150# - 600# |
150# - 2500# |
|
|
Mechanical Properties |
Hardness (D) |
75 ~ 85 |
55 ~ 60 |
≥ 82 |
Tensile Strength (MPa) |
31.4 ~ 37.5 |
28 ~ 40 |
≥ 95 |
|
Tensile Elongation (Break, %) |
50 ~ 200 |
> 350 |
≥ 55 |
|
|
Physical Properties |
Specific Gravity (g/cm3) |
2.11 ~ 2.16 |
2.16 ~ 2.18 |
1.3 ~ 1.4 |
Water Absorption, 24 hrs. (%) |
0.00 |
0.00 |
0.2 |
|
Water Absorption Saturation |
< 0.01 |
<0.01 |
0.5 |
|
Service Application |
Cryogenic & Low Temperature |
Chemical & Low Temperature |
High Pressure & Temperature |
|
Application Industries
Oil and gas
Power Plants
Chemicals
Pharmaceuticals
Marine
